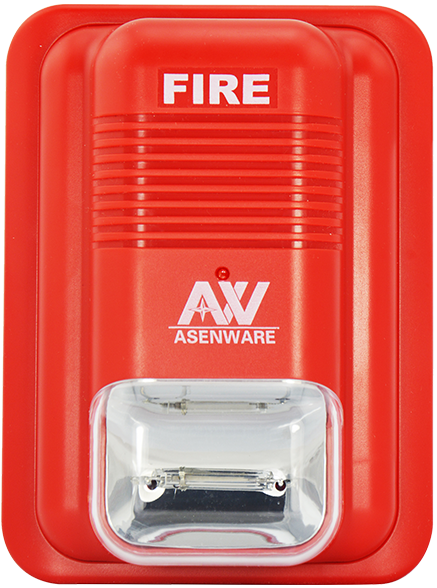

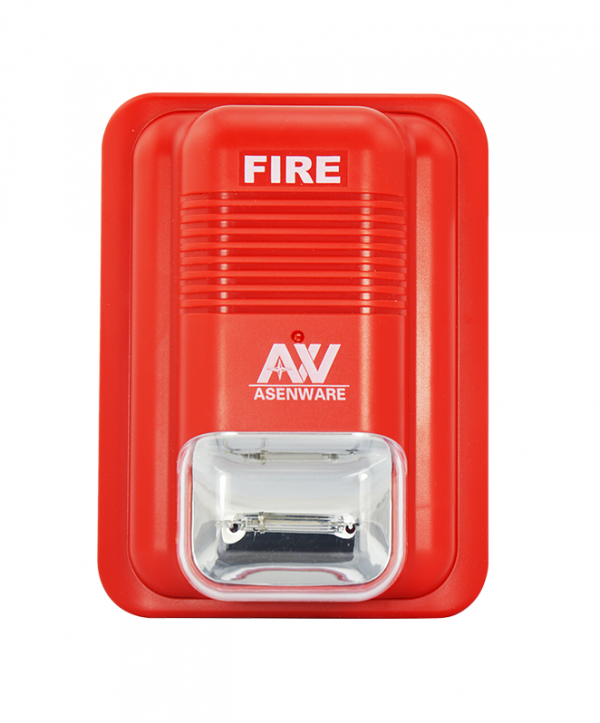

آژیر فلاشر کانونشنال
مشخصات فنی:
Operating Voltage
Power: 24VDC (20V~28V)
Operating Current
≤100mA
EN54-23 Coverage
C-3-8/W-2.4-6(coverage volume see the following figures)
Flash Color and Frequency
White, 0.5Hz
Light Output Synchronization
Meets EN54-23
Sound Level
See the following table”Sound Level Data”
Ingress Protection Rating
IP21C
Operating Temperature
-10℃ ~ +50℃
Relative Humidity
≤95%, non condensing
Material of Lens/Body
Flame retardant PC/ABS
Dimension
ф100mm×100.5mm( with the base)
Mounting
Hole Spacing
45mm ~ 70mm
Weight
About 266g (with the base)
Operating Voltage
Power: 24VDC (20V~28V)
Operating Current
≤100mA
